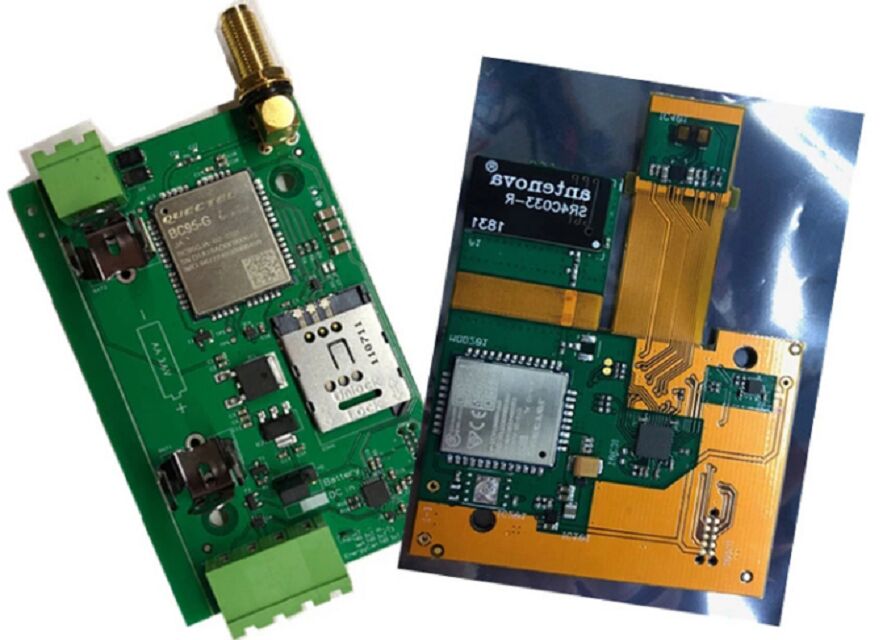

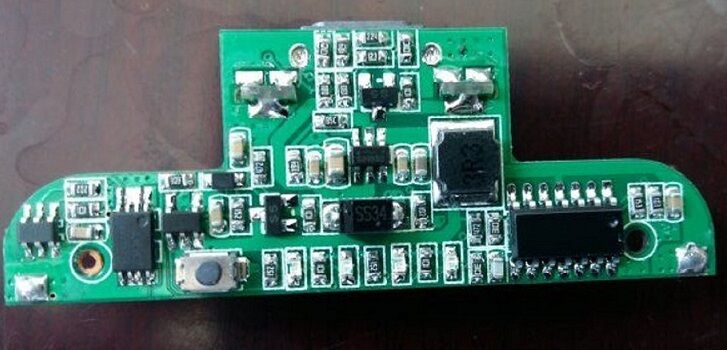

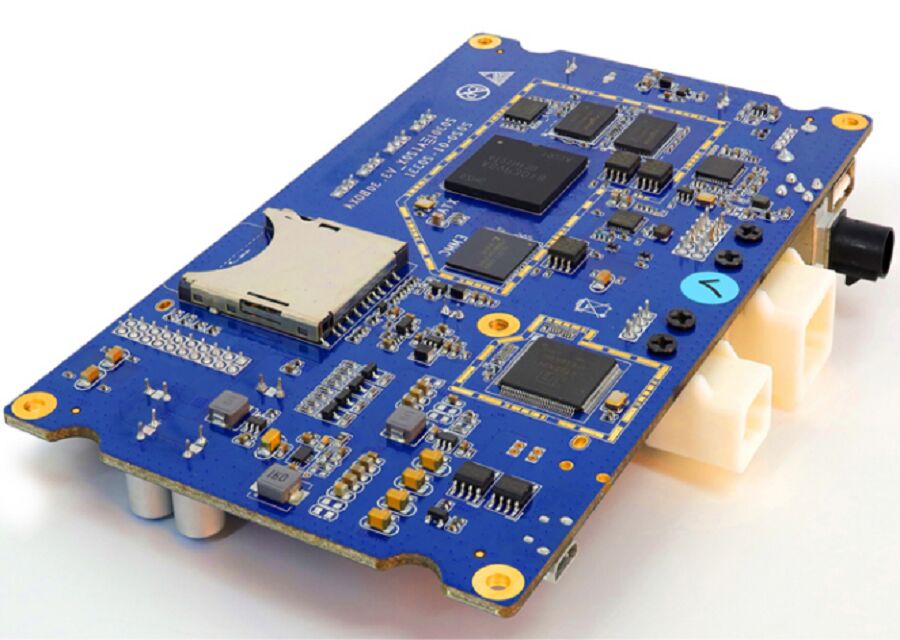

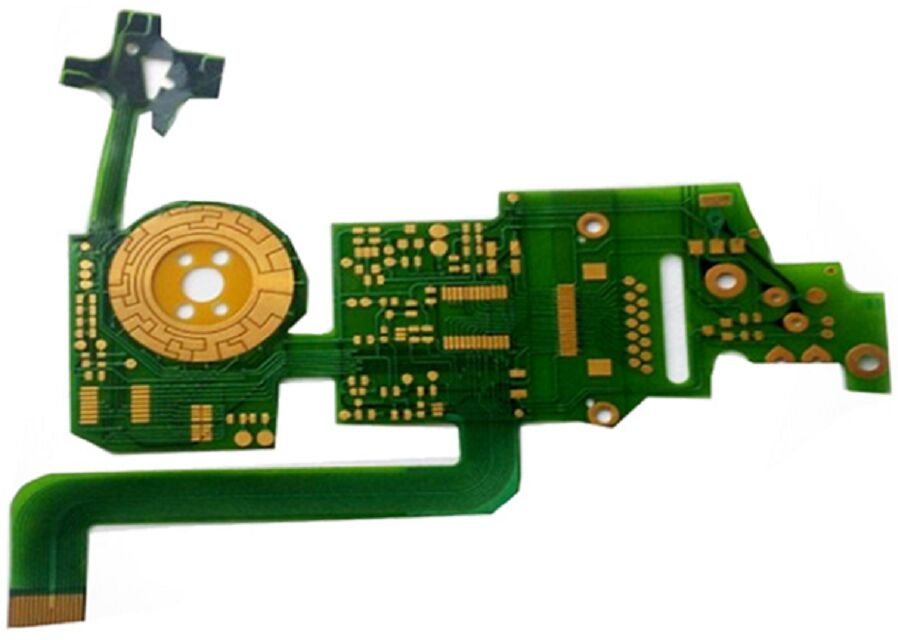

Name: Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG
Brand: Suntek Electronics Co., Ltd.
SKU: F016-051
Price: 50.00 USD
Availability: InStock

Nhà > các sản phẩm > Bộ PCB chìa khóa hoàn chỉnh >

Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG

Custom PCB fast turn assembly

Irregular shape PCB ENIG

Turnkey PCB Assembly service

Nguồn gốc:

Trung Quốc/Campuchia

Hàng hiệu:

Suntek/BECC

Chứng nhận:

ISO9001 ISO13485 IATF16949 UL

Số mô hình:

F016-051

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Vật liệu:

FR4, Rogers, Kim loại, Nhôm, CEM

độ dày:

0,4mm-5 mm

Lớp:

1L-32L

Bề mặt:

LF HASL,ENIG,OSP,Mạ vàng

Kích thước tối đa:

1200*400mm

Tiêu chuẩn chất lượng:

IPC-610A Loại 2 hoặc Loại 3

Ứng dụng:

AI điện tử, y tế, công nghiệp, ô tô, đo lường, hiển thị

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

Giá bán

Customized products

chi tiết đóng gói

Bởi túi ESD và thùng carton

Thời gian giao hàng

5-7 ngày sau tất cả các thành phần

Điều khoản thanh toán

TT, Paypal

Sản phẩm liên quan

băng hình

Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG

Nhận được giá tốt nhất

băng hình

PCB fabrication and assembly Turnkey pcb assembly Contact manufacturer in China and Cambodia for artificial intelligence

Nhận được giá tốt nhất

băng hình

EMS Factory Fast Turnaround PCB fabrication and PCB assembly in Cambodia for automotive

Nhận được giá tốt nhất

băng hình

PCB assembly services One-stop EMS solution with fast turnaroud and prototypes for Automotion

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

Quick-turn Full Turnkey PCB Manufacturer and PCB Assembly for AI products

PCBA/PCB One-stop EMS Solution PCB Assembly SMT/THT/DIP Assembly

with 14-Year Experience and ISO9001/ISO13485/IATF16949 and UL certified

Wire Harness and Box-Build Contract Factory in China and Cambodia

About Suntek Group:

1) We offer One-stop PCB/FPC,PCB assembly,Cable assembly and Box build assembly service

2) 14-years of turnkey OEM/ODM experience

3) We can provide FR4,Rogers,Aluminum PCB and PI FPCs

4) Timely customizations PCBs and PCBAs according your BOM list and Gerber files.

Headquarter: Suntek China

PCB/PCB Assembly
Wires/Cable Assembly
FPC/FPC Assembly
Box Building

Add: Bld3, No.68 Luositang Road, Changsha E&D Zone, Changsha, Hunan, CN

Subsidiary: BECC Cambodia

Area: 28,500 feet²
Employees: 22+, extendable to 200+
SMT Lines: 2 lines, extendable to 6 lines
THT Lines: 1 line, extendable to 4 lines
Cable Assembly: 1 line, extendable to 2 lines
Box Building: Extendable to 2 lines

Add: Prey Khla Village, Krang Mkak Commune, Angk Snuol District, Kandal Province, Cambodia

Main Products

1. PCB	2. PCBA	3. FPC	4. FPC Assembly
5. Flexible-Rigid PCB	6. Aluminum PCB	7. Rogers PCB	8. HDI PCB
9. Cable Assembly	10. Wire Harness	11. Box Build	12. Technical Supports

PCB Capability:

Layer	1~32 Layers
Material	FR4(Tg 135-Tg180) 94v0,Rogers,Aluminum
Order Quanyity	1~500,000
Board shape	Rectangular,Round,Slots,Cutouts,Complex,Irregular
Board Cutting	Shear,V-score,Tab-routed,Counter sunk
Board thickness	0.5~5.0mm,Flex 0.01~0.25“
Copper weight	0.5oZ~10oZ
Solder mask	Double-sided green LPI,red,white,yellow,blue,black,purple,etc
Silk screen	Double-sided or single-sided in white,yellow,red,black
Min line width/space	50um
Max board dimensions	400mm*1200mm
Min drill hole diameter	0.1mm
Surface finish	HASL,ENIG,Immission Ti,Immisson Silver,OSP,ENEPIG,etc
Board thickness tolerance	±10%
Quality Standard	IPC-A610 Class2/Class 3
Design file format	Ki-CAD,Pro-E Gerber,Eagle and AutoCAD'S DXF,DWG

Detailed Terms for PCB Assembly

Technical requirement:

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603,0402,0201 components,BGA,QFN,DFN SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

5) PCB Assembly with Lead or non-lead RoHs

6) AI machine assembly,waving solering assembly lines

7) High density interconnected board placement technology capacity

PCB Assembly Quality Control

Our Target: 95% customers satisfied
Quality Policy: Continuous improvement makes the perfect quality, and reach a win-win relationship with customers
Our Solution: One-stop, Flexible, Continuous improvement
Business Philosophy: Quality Wins Market, Ideas Create The Future
Our Vision: The long-term win-win partners in EMS field

Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG 0

Suntek Supports

Response Time: We respond to complaints, issues and queries within 24 hours through:

Weekly reports
Customer supporting team to review communication details
Customer satisfaction questionnaire

After-sales Services:

1-year guarantee period for all products
FOC repair
Quick compensation parts to replace defectives

Additional Support:

Cost transparency with BOM cost breakdown sharing
Components suppliers from the Global
Written process to advise customers of schedule delays or quality problems through:
- Customer service procedure
- RMA procedure
- 8D reports
- PDCA (Plan-Do-Check-Action) in customer service
